10 MPa Deep-sea Environment Simulation Test System with Hydraulic Lid System

Model Number : CDI-PT-A-D-10

Price : Negotiated Price

Packaging Details : Woodcase

Supply Ability : 10/per year

Place of Origin : China

Brand Name : Carpe Diem

Material : Q345R/16MuIII

MOQ : 1

Payment Terms : T/T

Delivery Time : 90 days

Contact Now

10 MPa Deep-sea Environment Simulation Test System
System Overview

Model: CDI-PT-A-D-10

This advanced autoclave system is designed for external hydraulic pressure strength testing of various shell sections, capable of handling over twenty types of large shells with maximum test pressures up to 10 MPa and annual usage of 700-1,000 cycles.

Equipment Layout
10 MPa Deep-sea Environment Simulation Test System with Hydraulic Lid System
Technical Specifications
Parameter Specification
Pressure Sensor Range & Accuracy 0-16 MPa; 0.1% FS accuracy
Pressure Control Accuracy 0.04 MPa; 0.001 MPa display resolution
Pressure Control Mode Step-by-step staged pressurization and depressurization
Common Test Pressures 3.31, 4.31, 5.4 and 7.2 MPa (with third-party verification)
Maximum Test Product Dimensions Diameter: 535 mm, Length: 2200 mm
Working Medium Water
Autoclave Structure Vertical design with anti-corrosion treatment
Autoclave Dimensions Inner diameter: 1000 mm; Effective height: 4000 mm
Maximum Working Pressure 10 MPa
Lid Opening/Closing Time ≤ 20 minutes
Pressurization/Depressurization Times Adjustable
Water Filling/Draining Time ≤ 0.5 hours
System Components
Lid Opening/Closing System

Hydraulic vertical and horizontal systems with automatic operation, safety interlocks, and O-ring seals. Opening/closing time ≤ 20 minutes.

Pressurization System

Italian Interpump electric plunger pump with frequency converter, stepless pressure regulation, and emergency stop functionality.

High-Pressure Vessel

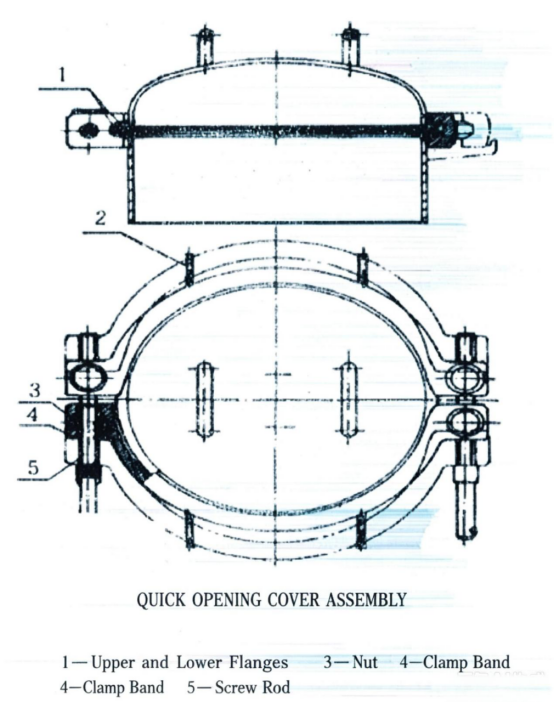

Q345R construction with anti-rust coating, quick-opening lid mechanism with lead screw drive for efficient operation.

10 MPa Deep-sea Environment Simulation Test System with Hydraulic Lid System
Control & Safety Systems

Comprehensive audible/visual alarms, water filtration, and advanced control systems with multiple safety interlocks.

Control System Specifications
Hardware Configuration
  • Industrial PC: Advantech IPC-510 with quad-core i7-2600 CPU
  • Memory: 4 GB RAM, 500 GB HDD
  • Monitor: 22-inch LCD display
  • PLC: S7-200 SMART
  • Printer: HP M1136 laser printer
Software & Data Management
  • Operating System: W7
  • Real-time pressure display with 0.01 MPa accuracy
  • Automatic test database for permanent data storage
  • Data export in TXT, Excel, PDF, Word, Access, and Oracle formats
  • Query capabilities by product model, serial number, batch, tester, or date
Safety Features
  • Automatic pressure release during abnormal conditions
  • Manual emergency stop button for immediate shutdown
  • Automatic fault diagnosis with maintenance codes
  • RJ45 interface with RS232/RS485 connectivity
